• Ideal for commissioning, testing, and maintenance of DALI systems.
• The DALI bus is widely used in modern lighting control applications, including dimmable LED luminaires.
• A DALI master controller is required to communicate with and control DALI slave devices.
• The DALI bus requires a nominal 16 V power supply with a current limit of 200 mA. The device includes an integrated DALI bus power supply.
• The device connects to a host PC via Ethernet (IP) or USB HID (Human Interface Device), eliminating the need for dedicated drivers.
• USB-C and RJ45 connection.
• Galvanic isolation is provided between the DALI bus and the USB interface.

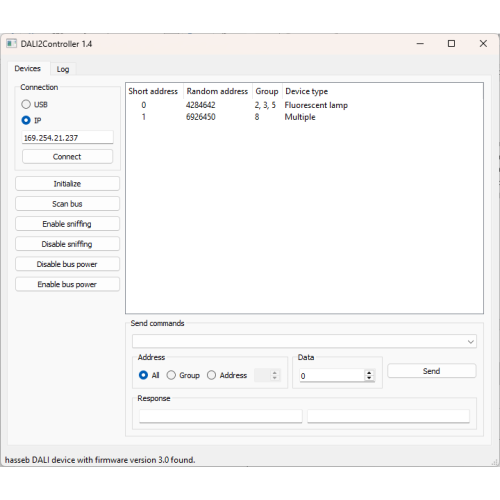

• Easy-to-use control software is included for DALI bus commissioning, device discovery, and control. Supported operating systems: Windows 11, macOS, and Linux.
• Open-source Python library available: https://github.com/hasseb/python-dali

Package contents:

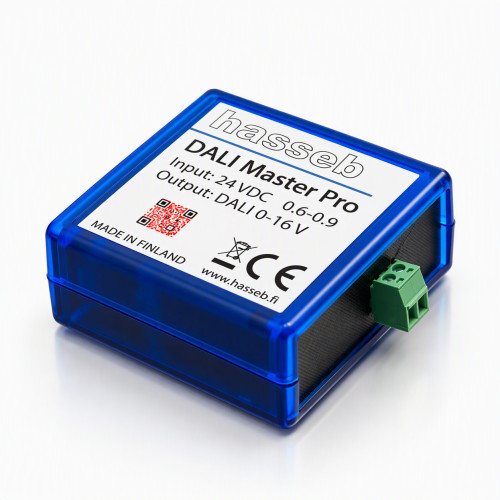

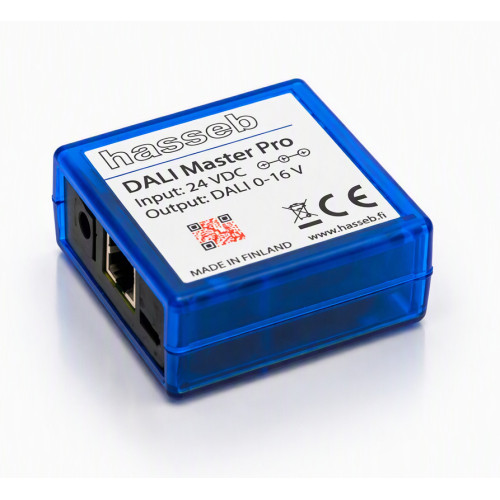

• USB-to-DALI / IP-to-DALI master controller.
• 24 V power supply unit.

Download the user manual and control software.
